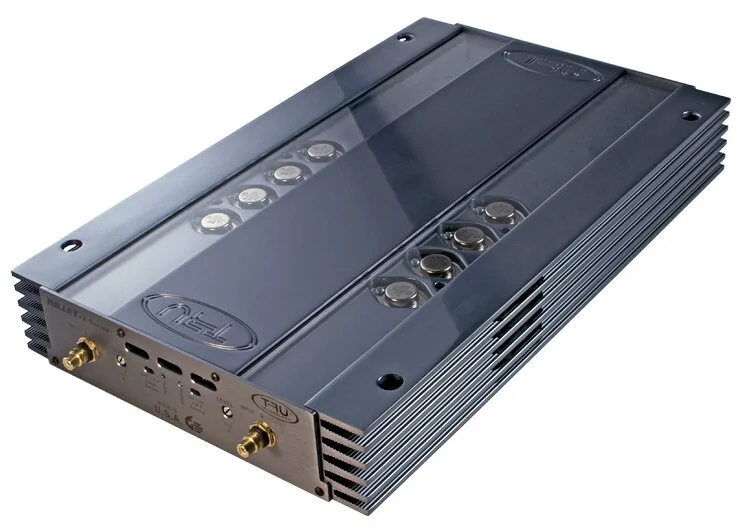

2 Channel AMPLIFIER

MODEL: B22-S (Class A/B )

CHANNELS: 1CH + 1CH (Dual-Mono)

FREQUENCY RESPONSE: 10Hz ~ 80kHz ±0.5dB

RATED POWER: 14.4VDC

4 RMS: 1 x 200W + 1 x 200W (Dual-Mono)

2 RMS: 1 x 300W + 1 x 300W (Dual-Mono)

4 MONO: 1 x 600W (Mono)

T.H.D. + NOISE: < 0.1%

S/N RATIO: > 100dB

INPUT SENSITIVITY (PRE-AMP ON): 300mV ~ 9V

INPUT SENSITIVITY (PRE-AMP OFF): 1.5V ~ 20V

FUSE REQUIREMENT: 100 Amp

POWER SUPPLY: 10VDC ~ 15VDC

INDEPENDENT LEVEL CONTROLS: Yes

STEREO LEVEL CONTROLS: Yes

PRE-AMP BYPASS: Yes

DUAL 50MM FANS

DIMENSION (L x W x H): 17 x 10 1/2 x 2 5/16 inch

                                           43.8 x 26.67 x 5.87cm

WEIGHT: 13.5Lbs. / 6.12Kg

COUNTRY OF ORIGIN: MADE and ASSEMBLED in CALIFORNIA, U.S.A.
