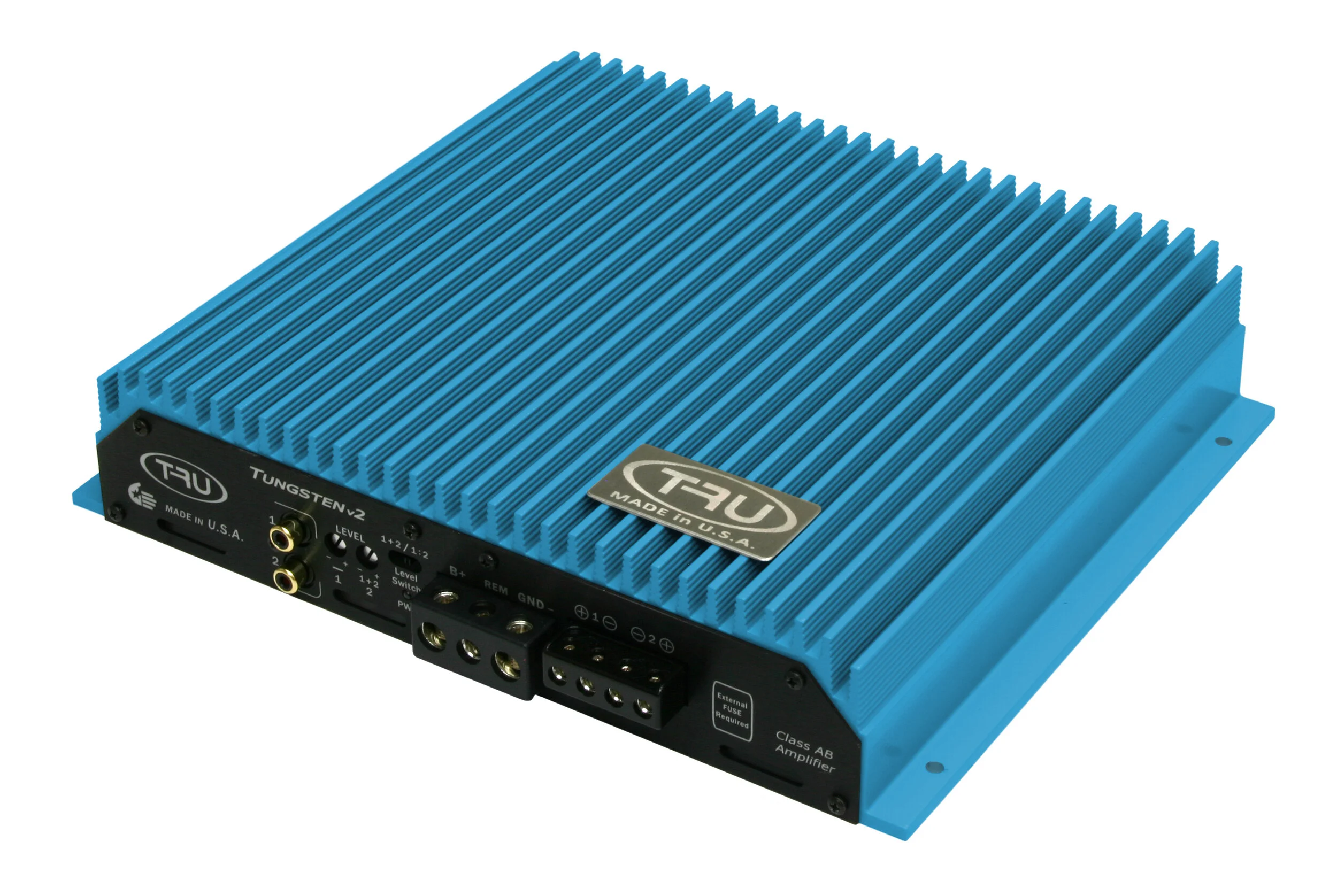

2 channel AMPLIFIER

MODEL: T2 (Class AB)

CHANNELS: 2 Channels

FREQUENCY RESPONSE: 10Hz ~ 30kHz ± 0.5dB

RATED POWER: 14.4 VDC

4Ω STEREO RMS: 125 x 2

2Ω STEREO RMS: 200W x 2

4Ω MONO RMS : 400W x 1

T.H.D. + NOISE: < 0.1%

S/N RATIO (A-WEIGHTED): > 100dB

INPUT SENSITIVITY: 275mV ~ 8.5V

INPUT IMPEDANCE: 10K

FUSE REQUIREMENT: 60 Amp (External)

POWER SUPPLY: 10VDC ~ 15VDC

HIGH PASS X-OVER: 30Hz ~ 400Hz @ 12dB / oct

LOW PASS X-OVER: 30Hz ~ 400Hz @ 12dB / oct

DIMENSION (W x H x D): 11 x 9 x 2 1/4 inch

WEIGHT: 8.35 lbs. /3.79Kg

COUNTRY OF ORIGIN: MADE and ASSEMBLED in CALIFORNIA, U.S.A.
